Charger Checker

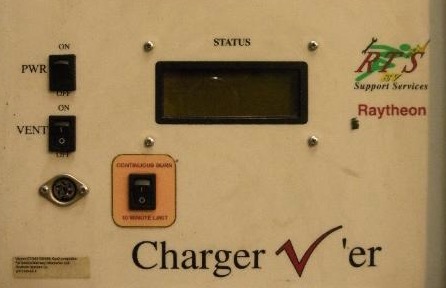

The pictures below show an interesting tool a
friend recently found in CA (2011.10).  It is made by
Raytheon Systems
and tests / checks the functions of Mange Charge LPI and SPI
paddle chargers.  We believe that the SPI tests
only cover RF communications as the
tool was built before SPI units [IR comm. ] were developed.

Raytheon SuperChecker Model SC102, SN 107

--> Operational videos are posted below on this page <--
Magne Charge - Tools '96 -'97 (v2)
This system runs 13
tests on the Magne
Charge paddle
chargers.  The initial
12 tests complete in
approximately 2
minutes, and then it
runs a full-charge test
for 10 minutes, or
longer if the operator
so requests.

If anyone knows
anything about the
history of these units
we would appreciate
hearing from you at:

magnecharge@tzev.com
This video shows the
ChargerChecker
running its tests on a
GM Gen1 LPI Magne
Charger unit.  13
tests over 12 minutes.
This video shows the
ChargerChecker
running its tests on a
GM Gen2 LPI Magne
Charger unit.  13
tests over 12 minutes.
This video shows the
ChargerChecker
running its tests on a
Toyota TAL SPI
Magne Charger unit.
13 tests over 12
minutes.
This video shows a
close-up of the
ChargerChecker's
display screen.  Our
other videos were
unable to clearly
pickup the display so
this is our new
attempt to better
show the 13 tests
over 12 minutes.
